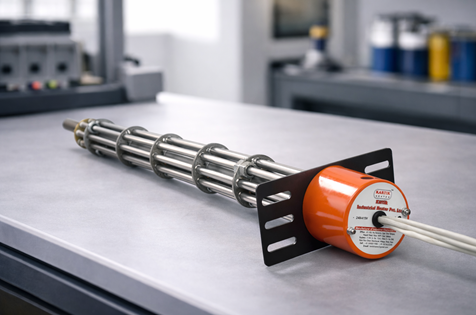

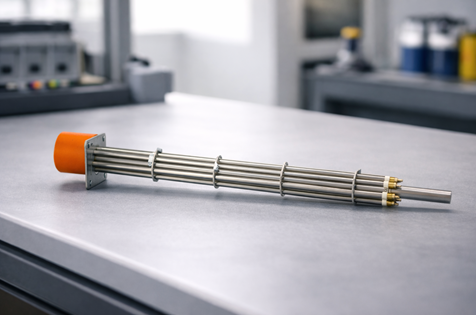

Corrugation Machine Heater

Kartik Industrial Heater Pvt. Ltd. manufactures corrugation machine heater solutions for corrugated board production equipment where consistent and controlled heating is essential to the manufacturing process. As an experienced corrugation machine heater manufacturer, the company manufactures standard and application-specific heating solutions based on machine dimensions, electrical requirements, heating configuration, and customer specifications.

The heaters are manufactured using industrial-grade components such as stainless steel or Incoloy sheaths, 80/20 Ni-Cr resistance wire, fused MGO insulation, and a stainless-steel center rod. Different heater sizes and configurations are available for corrugation machinery based on the required heating arrangement.

What Is a Corrugation Machine Heater?

A corrugation machine heater is a specialized industrial heating element used in corrugation machinery to provide the heat required during corrugated board production. Consistent heating helps maintain the required thermal conditions during the manufacturing process and supports stable bonding and continuous operation.

A corrugation heater element generally consists of a resistance wire enclosed within an insulated tubular construction. When electrical current passes through the resistance wire, heat is generated and transferred through the protective sheath to the required heating area.

The heating elements are available in different configurations to suit individual machine requirements. The premium range includes 11 mm and 13 mm tube diameters, with stainless steel and Incoloy sheath options for different operating conditions.

Industrial Corrugation Heater for Continuous Production

An industrial corrugation heater must deliver consistent heating during demanding production cycles. Temperature consistency is particularly important in corrugation machinery because variations in heating can affect the bonding process and the quality of the finished board.

The heating elements use precision-wound 80/20 Ni-Cr resistance wire with fused MGO insulation. The construction is designed to provide the electrical insulation and heat transfer required for industrial operation.

Each heating element undergoes capacity and electrical insulation testing before dispatch. The heating arrangement can be selected according to the machine configuration and required rating.

This makes the heaters suitable for different corrugation machine sizes and production requirements where reliable and controlled heating is required.

Corrugation Heater Element: Construction and Materials

The construction of a corrugation heater element has a direct impact on its mechanical strength, electrical insulation, and heat-transfer characteristics.

The published construction includes:

• Tube diameter: 11 mm and 13 mm for the premium range

• Sheath material: Stainless Steel 304 / Incoloy

• Resistance wire: 80/20 Ni-Cr

• Insulation: Fused MGO

• Center rod: Stainless steel to help prevent bending

• Connection wire: F-class insulation

• Connection box: Powder-coated construction

These materials and components are selected according to the requirements of corrugation machinery and the intended operating conditions.

Corrugation Machine Heater Specifications

Corrugation machine heaters are available in different sizes and configurations to accommodate different machine designs.

Published options include:

• 32-inch

• 36-inch

• 42-inch

• 45-inch

• 52-inch

• 62-inch

• Special machine-specific sizes

• Oblique designs

• Vertical designs

• Different heating ratings according to machine requirements

Each heater consists of nine heating rods connected in a star configuration for three-phase supply. Individual heating rods are designed to be replaceable, which can simplify maintenance when a replacement is required.

Custom Corrugation Machine Heater Manufacturing

Corrugation machines can vary in dimensions, heating areas, electrical requirements, and mechanical configurations. As a result, a standard heating element may not be suitable for every machine.

Kartik Industrial Heater Pvt. Ltd. manufactures customized corrugation heating solutions according to machine and application requirements. Special sizes as well as oblique and vertical configurations can be developed according to customer specifications.

Customization may include:

• Heater length

• Tube diameter

• Machine-specific shape

• Wattage

• Voltage

• Mounting configuration

• Sheath material

• Heating arrangement

For replacement or OEM requirements, machine drawings, existing heater dimensions, electrical specifications, or a sample can be provided to determine the appropriate configuration.

Corrugation Machine Heater Manufacturers for OEM Requirements

When evaluating corrugation machine heater manufacturers, the heating element should be assessed according to both its electrical and mechanical compatibility with the equipment.

A corrugation heater needs to correspond with the machine's heating area, available installation space, electrical supply, required power rating, and heating configuration.

Kartik Industrial Heater Pvt. Ltd. manufactures industrial heating elements at its manufacturing facility in Rata, Vapi, Gujarat. The manufacturing capability includes application-specific heating solutions for industrial equipment and OEM requirements.

For replacement applications, existing heater dimensions and electrical details can be used to determine the required configuration. For new machinery, the heater design can be developed around the machine's intended heating arrangement.

Corrugation Machine Heater Supplier for Industrial Applications

As a corrugation machine heater supplier, Kartik Industrial Heater Pvt. Ltd. supplies heating solutions for corrugation equipment based on machine and application requirements.

The heaters are applicable to corrugation equipment including single facer corrugation machines, double backer heating systems, and customized corrugated board production lines.

For replacement requirements, details such as the existing heater dimensions, voltage, wattage, configuration, and connection arrangement are useful when selecting a suitable replacement.

For new machinery, the required heating area, machine configuration, electrical supply, and operating requirements can be considered during heater selection.

Applications of Corrugation Heaters

Corrugation heaters are used in equipment where controlled heating is required during corrugated board production.

Typical applications include:

• Single facer corrugation machines

• Double backer heating systems

• Corrugated board production lines

• Packaging machinery

• Machine-specific corrugation equipment

The appropriate heater configuration depends on the machine design, heating zone, electrical supply, required heating capacity, and available installation space.

Why Choose Kartik Industrial Heater Pvt. Ltd.?

Kartik Industrial Heater Pvt. Ltd. was established in 2010 and manufactures industrial heating solutions at its facility in Rata, Vapi, Gujarat.

The company's industrial heating range includes tubular heaters, immersion heaters, air heaters, finned air heaters, and corrugation machine heaters.

For corrugation heating applications, the manufacturing capabilities include:

• Application-specific heater configurations

• Custom machine dimensions

• Industrial-grade materials

• 80/20 Ni-Cr resistance wire

• Fused MGO insulation

• Electrical insulation testing

• Replaceable heating rods

• Special machine-specific sizes

• Vertical and oblique configurations

• OEM requirements

The manufacturing and testing processes are carried out according to the technical requirements of the heating application.

Related Tubular Heating Solution: Finned Air Heater

Industrial heating systems may require different heater configurations depending on the medium being heated. When the application involves heating moving air rather than providing direct heating for corrugation machinery, a Finned Air Heater can be considered.

Finned air heaters increase the external surface area of the heating element to facilitate heat transfer to moving air. They are used in applications such as air ducts, forced-air systems, drying tunnels, dehumidifying systems, curing equipment, drying ovens, and process chambers.

How to Choose a Corrugation Machine Heater

Selecting the correct corrugation machine heater requires consideration of the machine's physical and electrical requirements.

Machine Dimensions

The heater length and overall configuration should correspond to the available heating area and machine design.

Electrical Requirements

Voltage, phase arrangement, and power rating should be confirmed before selecting the heating element.

Heating Configuration

The heater should match the machine's heating arrangement, including vertical, oblique, or other application-specific configurations.

Sheath Material

The sheath material should be selected according to the operating environment and required temperature conditions.

Replacement Requirements

For replacement applications, compare the existing heater's dimensions, electrical specifications, connection arrangement, and mounting configuration.

Custom Machine Requirements

For new or modified machinery, machine drawings and relevant technical specifications can help determine the appropriate heater configuration.

Request a Customized Corrugation Machine Heater

A corrugation machine heater should be selected according to the actual machine rather than simply choosing a standard size. Kartik Industrial Heater Pvt. Ltd. manufactures heating solutions based on machine-specific dimensions, electrical requirements, heating configurations, and customer specifications.

For a corrugation machine heater manufacturer in India for replacement, OEM, new machinery, or bulk requirements, provide the relevant machine and heating details.

Useful information includes:

• Machine type

• Heater size

• Existing heater details

• Required voltage

• Required wattage

• Quantity

• Drawing or sample, if available

• Required configuration

Need a Customized Corrugation Machine Heater?

Discuss your corrugation machine heating requirement and find a suitable configuration for your application.
