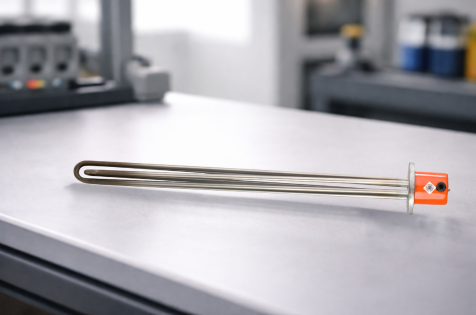

Oil Immersion Heater

Kartik Industrial Heater Pvt. Ltd. manufactures oil immersion heater solutions for industrial applications where controlled heating of oil and compatible process fluids is required. These heaters are designed for direct immersion into the heating medium, allowing heat to be transferred efficiently from the electrical heating element to the surrounding oil.

Oil immersion heaters can be configured according to the type of oil, required temperature, wattage, voltage, heater dimensions, material, mounting arrangement, and available installation space. They are suitable for industrial tanks, process equipment, heat-transfer systems, machinery, and other applications requiring controlled oil heating.

What Is an Oil Immersion Heater?

An oil immersion heater is an electric heating element designed to operate directly inside oil or another compatible process fluid. When electrical current passes through the resistance element, electrical energy is converted into heat.

The generated heat passes through the insulated tubular construction and protective sheath before transferring to the surrounding oil.

This direct heating method can be used for:

• Lubrication oil

• Process oil

• Heat-transfer oil

• Industrial fluids

• Compatible thermal fluids

• Oil storage and process tanks

The heating element should be selected according to the oil type, operating temperature, required heating capacity, and application conditions.

How Does an Oil Immersion Heater Work?

An oil immersion heater works through electrical resistance heating. The resistance wire inside the tubular heating element generates heat when electrical power is supplied.

The heat is transferred through the insulation and protective sheath into the surrounding oil. The oil then circulates naturally or through the process system, distributing the generated heat.

The basic heating process is:

Electrical energy → resistance heating → heat transfer through sheath → oil heating

The required heater configuration depends on:

• Oil type

• Required operating temperature

• Oil volume

• Heating time

• Required wattage

• Voltage

• Heater dimensions

• Installation arrangement

• Operating conditions

Proper heater selection is important because oil-heating applications can have different temperature and heat-transfer requirements from water-heating systems.

Industrial Oil Immersion Heater Applications

Oil immersion heaters are used in industrial equipment and process systems where oil needs to be heated or maintained at a specified temperature.

Common applications include:

• Lubrication oil tanks

• Heat-transfer oil systems

• Process oil tanks

• Industrial machinery

• Oil storage vessels

• Manufacturing equipment

• Process heating systems

• Thermal fluid systems

The heater configuration should be selected according to the oil volume, required temperature, heating time, electrical supply, and installation space.

Oil Immersion Heater Element

An oil immersion heater element generally consists of a resistance heating wire, electrical insulation, and a protective tubular sheath. The material and construction are selected according to the oil and operating conditions.

The element remains in direct contact with the heating medium, making material selection important for long-term operation.

Depending on the application, relevant specifications can include:

• Tube diameter

• Tube material

• Heater length

• Wattage

• Voltage

• Mounting type

• Terminal configuration

• Overall dimensions

For replacement applications, the existing heater sample, dimensions, wattage, voltage, material, and mounting details can be used to determine the required configuration.

Custom Oil Immersion Heater Manufacturing

Different industrial tanks and process systems can require different heating element designs. A standard heater may not always fit the available installation space or provide the required heating capacity.

Custom configurations can include:

• Heater length

• Wattage

• Voltage

• Tube diameter

• Sheath material

• Mounting arrangement

• Terminal configuration

• Overall dimensions

• Bending configuration

• Quantity

For OEM and replacement requirements, customers can provide technical drawings, existing heater samples, photographs, dimensions, machine details, or electrical specifications.

How to Choose an Oil Immersion Heater?

Choosing an oil immersion heater should start with the heating application rather than simply selecting the highest wattage.

Consider the following factors:

1. Type of Oil

Identify the oil or thermal fluid that needs to be heated and ensure the heating element material is suitable for the medium.

2. Required Temperature

The target operating temperature influences the heater design, material, and required heating capacity.

3. Oil Volume

The amount of oil that needs to be heated affects the required wattage and heater size.

4. Heating Time

The required time to reach the target temperature should be considered when determining the heating capacity.

5. Wattage and Voltage

The heater's electrical specifications should match the required heating capacity and available power supply.

6. Heater Dimensions

The heater length, diameter, shape, and mounting arrangement should fit the tank or process equipment.

7. Installation Conditions

The heater should be positioned correctly within the tank or vessel and operated according to the application's installation requirements.

Oil Immersion Heaters Manufacturers for Industrial Requirements

When comparing oil immersion heaters manufacturers, businesses should evaluate the manufacturer's ability to provide application-specific configurations rather than selecting a product based only on standard dimensions.

Important considerations include:

• Manufacturing capability

• Material options

• Custom heater dimensions

• Wattage and voltage options

• Mounting configurations

• OEM support

• Replacement heater manufacturing

• Quality and electrical testing

• Bulk production capability

A suitable manufacturer should be able to understand the heating application and configure the element according to the oil, temperature, tank, and electrical requirements.

Oil Immersion Heater India for OEM and Industrial Applications

Businesses sourcing an oil immersion heater india solution may require different configurations depending on their equipment and process requirements.

Industrial applications can require specific:

• Heater lengths

• Tube diameters

• Materials

• Wattages

• Voltages

• Mounting arrangements

• Terminal configurations

• Quantities

For OEM equipment, technical drawings and machine specifications can help determine the required heating element. Replacement applications can be evaluated using the existing heater's dimensions and electrical specifications.

Oil Immersion Heaters India for Industrial Supply

Oil immersion heaters india are used across industrial applications where controlled heating of oil or compatible thermal fluids is required.

For industrial procurement, customers should provide the relevant technical information before selecting the heater, including:

• Type of oil

• Oil volume

• Required temperature

• Heating time

• Wattage

• Voltage

• Heater dimensions

• Installation arrangement

• Quantity

Complete technical information allows the heating element to be matched more accurately to the intended application.

Why Choose a Customized Oil Immersion Heater?

Oil-heating systems can differ significantly in tank size, oil type, temperature, heating capacity, and installation arrangement. A customized heating element can therefore be more suitable than a standard configuration for specific industrial applications.

Customization can help address:

• Restricted installation space

• Specific heating zones

• Required wattage

• Fixed voltage

• Special mounting requirements

• Replacement dimensions

• OEM equipment requirements

• Repeat production requirements

The heating element can be configured according to the technical specifications provided for the application.

Explore Other Immersion Heater Solutions

Oil heating is one application within the broader immersion heating range. If your requirement involves direct heating of water or another compatible liquid, explore the related options:

Explore Water Immersion Heater →

These pages can help you compare different immersion heating solutions based on the heating medium and application.

Need an Oil Immersion Heater?

Looking for an oil immersion heater for an industrial tank, process system, machinery, or heat-transfer application?

Share the oil type, required temperature, oil volume, heating time, wattage, voltage, heater dimensions, and installation requirements to determine the appropriate configuration.
