Immersion Heaters

Immersion heaters are electric heating elements designed for direct heating of liquids in tanks, vessels, boilers, and industrial process systems. They are used where controlled and uniform heating of water, oil, chemicals, cleaning solutions, and other suitable process fluids is required.

The heating element is installed directly inside the liquid, allowing heat to transfer from the resistance element to the surrounding fluid. Immersion heater elements can be configured according to the liquid type, required temperature, wattage, voltage, dimensions, material, and installation arrangement.

What Is an Immersion Heater?

An immersion heater is an electric heating element designed to operate directly inside a liquid. When electrical power is supplied, the resistance element generates heat, which passes through the insulated construction and transfers to the surrounding liquid.

This direct heating method is suitable for applications where liquids need to be heated efficiently and maintained at a specified temperature. Depending on the application, immersion heaters can be used for water, oil, chemicals, cleaning solutions, heat-transfer fluids, and other compatible process liquids.

Typical immersion heater elements consist of a resistance heating wire, electrical insulation, and a protective tubular sheath. The construction and material are selected according to the liquid, operating temperature, electrical requirements, and surrounding conditions.

How Does an Electric Immersion Heater Work?

An electric immersion heater works by passing electrical current through a resistance heating element. The resistance wire converts electrical energy into heat. This heat passes through the insulated tubular construction and is transferred to the liquid surrounding the element.

The required configuration depends on several factors, including:

• Type of liquid

• Operating temperature

• Tank or vessel size

• Required wattage

• Voltage

• Heater length

• Tube diameter

• Installation method

• Required heating time

The heating element material is also important because the element remains in direct contact with the liquid during operation. Depending on the application, materials such as SS304, SS316, Incoloy, and copper may be considered.

Industrial Applications of Immersion Heaters

Immersion heaters are used across different industrial and process heating applications where liquids need to be heated or maintained at a specified temperature.

Common applications include:

• Industrial water tanks

• Boilers and storage vessels

• Cleaning and washing systems

• Food and beverage processing

• Lubrication oil systems

• Heat-transfer oil units

• Chemical and petrochemical processes

• Industrial machinery

• Process heating systems

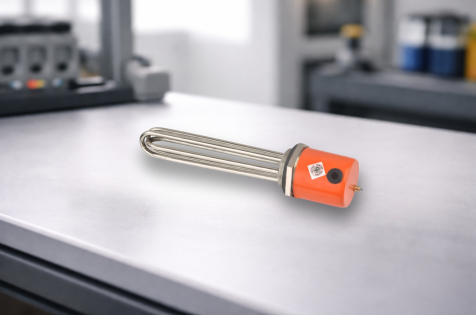

• Solar water heating systems

The required heater configuration varies according to the liquid, heating capacity, operating temperature, tank dimensions, available electrical supply, and installation arrangement.

For OEM equipment and industrial machinery, immersion heating elements can also be configured according to available installation space and equipment specifications.

Water and Oil Immersion Heaters

Water and oil have different heating characteristics and operating requirements. Therefore, the heater material, wattage, dimensions, and construction should be selected according to the liquid being heated.

Water Immersion Heater

A Water Immersion Heater is used for direct heating of water in tanks, vessels, boilers, cleaning systems, and hot-water equipment.

The configuration depends on factors such as water temperature, tank capacity, required heating time, wattage, voltage, heater dimensions, and mounting arrangement.

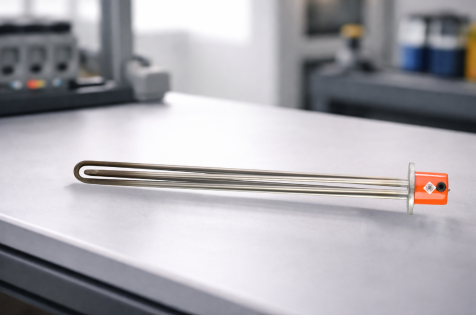

Oil Immersion Heater

An Oil Immersion Heater is designed for heating lubrication oils, process oils, heat-transfer fluids, and other suitable industrial liquids.

Oil-heating applications may require different materials, wattage, and operating temperatures compared with water-heating applications. The heater should therefore be selected according to the specific oil and process conditions.

How to Choose the Best Immersion Heater?

Choosing the best immersion heater depends on the application rather than simply selecting a heater with a higher wattage. The heating element should be compatible with the liquid and suitable for the required operating conditions.

When selecting an immersion heater, consider:

1. Type of Liquid

Identify whether the heater will be used for water, oil, chemicals, cleaning solutions, heat-transfer fluids, or another compatible liquid.

2. Required Operating Temperature

The target operating temperature affects the required wattage, material, construction, and overall heater configuration.

3. Tank or Vessel Size

Tank capacity and dimensions influence the amount of heat required and the appropriate heater size.

4. Required Wattage

Wattage should be selected according to the liquid, target temperature, heating time, heat loss, and operating conditions.

5. Voltage

The heater's electrical specification should match the available power supply and equipment requirements.

6. Heater Dimensions

Heater length, tube diameter, overall shape, and mounting arrangement should fit the available installation space.

7. Material Compatibility

The tube or sheath material must be suitable for the liquid and operating environment because the heating element remains in direct contact with the heated medium.

8. Installation Arrangement

Consider how the heater will be installed inside the tank, vessel, boiler, or process system and ensure that the mounting arrangement is compatible with the equipment.

The best immersion heater element is not necessarily the one with the highest wattage. It is the element whose material, dimensions, electrical specifications, and heating capacity match the actual application.

Custom Immersion Heater Manufacturing

Industrial equipment may require heating elements with specific dimensions and electrical specifications rather than a standard configuration.

Kartik Industrial Heater Pvt. Ltd. supports customized immersion heater manufacturing for OEM, replacement, industrial, and bulk requirements.

Customization can include:

• Heater length

• Wattage

• Voltage

• Tube diameter

• Tube or sheath material

• Mounting arrangement

• Terminal configuration

• Overall dimensions

• Quantity

• Application-specific configuration

For OEM and replacement applications, technical drawings, existing heater samples, photographs, dimensions, or electrical specifications can be provided to determine the required configuration.

Why Choose Kartik Industrial Heater Pvt. Ltd.?

Kartik Industrial Heater Pvt. Ltd. manufactures immersion heaters and other industrial heating solutions. The company was established in 2010 and manufactures industrial heating products at its facility in Rata, Vapi, Gujarat.

For customers comparing immersion heater manufacturers in india, factors such as manufacturing capability, material selection, customization, electrical specifications, and testing can be considered according to the application.

Kartik Industrial Heater Pvt. Ltd. provides immersion heating solutions for water, oil, industrial tanks, process systems, OEM equipment, and other liquid-heating applications.

The heating elements undergo resistance and insulation testing before dispatch, with the configuration selected according to the required application specifications.

For businesses looking for industrial immersion heater manufacturers, application requirements, material compatibility, customization capabilities, and required electrical specifications should be evaluated before selecting a supplier.

Immersion Heater Price: What Determines the Cost?

The immersion heater price depends on the required configuration and application specifications. There is no single price applicable to every type of immersion heater.

The cost can vary based on:

• Tube or sheath material

• Heater length

• Tube diameter

• Wattage

• Voltage

• Quantity

• Mounting arrangement

• Customization requirements

• Application requirements

For an accurate quotation, customers should provide the liquid type, required temperature, tank dimensions, heater length, wattage, voltage, quantity, and other relevant specifications.

Best Immersion Heater in India for Industrial Requirements

Finding the best immersion heater in india depends on the specific application rather than choosing a product based only on price or wattage.

For industrial applications, the heater should be evaluated based on:

• Liquid compatibility

• Required heating capacity

• Operating temperature

• Heater material

• Electrical specifications

• Installation requirements

• Dimensions

• Customization requirements

• Quantity and repeat-order requirements

Kartik Industrial Heater Pvt. Ltd. provides customized immersion heating solutions based on these application requirements for industrial customers, OEMs, machinery manufacturers, and process equipment applications.

Need an Immersion Heater?

Looking for an immersion heater for your tank, vessel, boiler, or industrial process?

Kartik Industrial Heater Pvt. Ltd. can provide immersion heating solutions based on your liquid type, required temperature, wattage, voltage, dimensions, material, and installation requirements.
